Getting Started

Introduction

Low-Level vs. High-Level Interfaces

When programming complex systems, there is an almost universal need for low-level control. In the context of FTC, this is often encountered in the hardware initialization stage of an OpMode, where, for example, you'll need to decide the behavior of your motors (direction, run mode, etc.).

The FTC SDK does a good job of providing an API (application programming interface) for accomplishing this, but this comes with some challenges for users. Namely, low-level control of individual motors, servos, and sensors does not always neatly translate into making robots perform high-level actions (like moving entire mechanisms).

Thus, there's room in the FTC ecosystem for what are called 'façade pattern' APIs, which interact with the FTC SDK's API at a low-level but provide users with massively simplified interfaces to control their robots' high-level actions in an intuitive manner.

This is what easy-ftc seeks to provide.

Mechanisms

An obvious way to provide higher-level control of your robot is to think in terms of mechanisms, rather than motors or servos. For instance, many teams have four drive motors, which, intuitively, just combine to form a single mechanism - the drivetrain. In this example, rather than focusing on ways to reduce the repetition of setting up and controlling four closely related but distinct pieces of hardware, teams could opt to leverage easy-ftc's suitable mechanism named Drive, which can allow them to implement their drivetrain in as little as three lines of code.

Standardized API

Another, less obvious tactic for creating simple, high-level interfaces, is to standardize the API as much as possible. As a counter-example, motors in the FTC SDK are often controlled via the function setPower(), whereas servos are most often controlled via setPosition(). In isolation, this isn't a big deal, but as more advanced features and approaches are implemented, these subtleties can propagate through your codebase to such an extent that forgetting a single function name may cause hours of head-scratching.

This brings us to easy-ftc's API.

API

`command()` - Mechanisms

command() is a function/method that tells (commands) a mechanism to move in a specific manner. This is most often seen in Autonomous routines, where most teams will program their robot to simply perform consecutive actions, though automated sequences in TeleOp can make use of commands as well (see CommandSequence().command()). easy-ftc provides simple ways to command each mechanism at a specified power and direction for either time- or distance-based movement.

`control()` - Mechanisms

control() is a function/method that enables teleoperated control of each mechanism, which is only allowed in the TeleOp portion of a match. More explicitly, this function reads inputs from the gamepad, processes those inputs, and then controls the mechanism based on these processed inputs. easy-ftc decides the control scheme for you, which obviously takes away some user control but comes with the benefit of being able to program a competitive robot with a single function.

`CommandSequence()` - Mechanisms

A common approach for improving the consistency of routine tasks in TeleOp (like scoring) is to automate these sequences via a state machine that's triggered by the user. CommandSequence().command() is a function/method that adds a mechanism command() to a planned sequence, enabling this functionality without needing to bother with state machines. As each command() returns a CommandSequence, several commands can be chained together to form complex routines. The sequence can then be used by simply adding sequence.control() to the main loop of the opMode, and can be interrupted between tasks to ensure you're never stuck in an unwanted state.

`state()` - Sensors

state() is a function/method that returns the current state/value of each sensor. The return value depends on the exact sensor but is either a boolean (Touch returns true if the sensor is pressed, false if not) or RGB (Color returns one of RED, GREEN, or BLUE). When combined with conditional statements and command()/control(), this allows teams to determine their robots' actions based on the surrounding environment. For example, if the color sensor returns BLUE, move forward.

`Builder().build()`

Most objects you'll encounter in Java are built with either basic constructors or setters, but both of these options can introduce some problems for both users and developers as the complexity of the object increases. All Mechanisms and Sensors in easy-ftc are constructed via nested Builder classes, which provide more clarity than constructors and eliminate the mutability of setters (say goodbye to confusing arguments and randomly reversed motors). This is where features (like encoders) are enabled and attributes (like device names) are modified.

Usage

Before we can dive into coding, follow the Install section of the README

JavaBlockly

TeleOp

First, create a Linear OpMode- note that easy-ftc only works with Linear OpModes

TeleOp - Starting Code

package org.firstinspires.ftc.teamcode;

import com.qualcomm.robotcore.eventloop.opmode.LinearOpMode;
import com.qualcomm.robotcore.eventloop.opmode.TeleOp;
// Imports

@TeleOp(name="Tele", group="dev")
public class Tele extends LinearOpMode {

    @Override
    public void runOpMode() {
        // Construction

        waitForStart();
        while (opModeIsActive()) {
            // Methods
        }
    }
}

Note the locations of Imports, Construction, and Methods

Before we can use easy-ftc, we'll need to import the relevant classes

Add the following to 'Imports'

import org.edu_nation.easy_ftc.mechanism.Drive;

Drive is a concrete class, which means we must instantiate it before our hardware can be controlled. easy-ftc relies on the builder design pattern to accomplish this, as it enforces immutability (valuable for complex, stateful objects like we see in robotics) and makes arguments more explicit. View Examples or the Javadoc for more details on valid Builder methods

Add this to 'Construction'
Note that we must pass instances of the opMode (this), hardwareMap, and gamepad1

Drive drive = new Drive.Builder(this, hardwareMap)
    .gamepad(gamepad1)
    .build();

If you want to control a mechanism in TeleOp, you'll need to add a control() method call for that mechanism in the while loop. For every loop iteration, this block will read the relevant gamepad inputs and send them to that mechanism's hardware devices, enabling TeleOp control

Add this to 'Methods' to make your robot drive
```
drive.control();
```

That's it! By default, this will control a two-motor tank drivetrain with the gamepad joysticks. This behavior can be changed by modifying the Builder methods (which is where hardware initialization is occurring)

TeleOp - Final Code

package org.firstinspires.ftc.teamcode;

import com.qualcomm.robotcore.eventloop.opmode.LinearOpMode;
import com.qualcomm.robotcore.eventloop.opmode.TeleOp;
import org.edu_nation.easy_ftc.mechanism.Drive;

@TeleOp(name="Tele", group="dev")
public class Tele extends LinearOpMode {

    @Override
    public void runOpMode() {
        Drive drive = new Drive.Builder(this, hardwareMap)
            .gamepad(gamepad1)
            .build();

        waitForStart();
        while (opModeIsActive()) {
            drive.control();
        }
    }
}

Autonomous

Let's do the same for autonomous

Create a Linear OpMode

Autonomous - Starting Code

package org.firstinspires.ftc.teamcode;

import com.qualcomm.robotcore.eventloop.opmode.LinearOpMode;
import com.qualcomm.robotcore.eventloop.opmode.Autonomous;
// Imports

@Autonomous(name="Auto", group="dev")
public class Auto extends LinearOpMode {

    @Override
    public void runOpMode() {
        // Construction

        waitForStart();
        if (opModeIsActive()) {
            // Methods
        }
    }
}

Note the locations of Imports, Construction, and Methods

Import Drive

import org.edu_nation.easy_ftc.mechanism.Drive;

Construct Drive

Drive drive = new Drive.Builder(this, hardwareMap)
    .build();

As autonomous does not allow gamepad control, we'll need to use the command() method to move a mechanism in this match phase. This method commands mechanisms to move as the user specifies, with servo mechanisms taking only one argument (direction) and motor mechanisms taking three (direction, measurement, and power)

Add this to 'Methods' to make your robot drive forward for 3 seconds at half-power
```
drive.command(Drive.Direction.FORWARD, 3, 0.5);
```

Distance-based movement can be automatically used instead of time by adding .encoder() and .diameter(wheelDiameter) to Drive.Builder(). .gearing(motorGearing) may also need to be corrected for increased accuracy

Now, what if you want your robot to move forward, then decide whether to move again based on the color of an object?

This is where state() is used

Import Color and Color.RGB

import org.edu_nation.easy_ftc.sensor.Color;
import org.edu_nation.easy_ftc.sensor.Color.RGB;

Construct the sensor

Color color = new Color.Builder(hardwareMap)
    .build();

Retrieve the state in 'Methods'
```
color.state();
```

This will allow your robot to read the color value of an object, but without additional logic, nothing will be different about your code. Let's change that

Add an if statement after the first command() call that checks if the state is equal to RGB.BLUE
```
if (color.state() == RGB.BLUE) {

}
```

Add another command() call inside the if statement

drive.command(Drive.Direction.FORWARD, 3, 0.5);

Now your robot will drive forward for 3 seconds at half-power, then do it again if it detects the color blue

Autonomous - Final Code

package org.firstinspires.ftc.teamcode;

import com.qualcomm.robotcore.eventloop.opmode.LinearOpMode;
import com.qualcomm.robotcore.eventloop.opmode.Autonomous;
import org.edu_nation.easy_ftc.mechanism.Drive;
import org.edu_nation.easy_ftc.sensor.Color;
import org.edu_nation.easy_ftc.sensor.Color.RGB;

@Autonomous(name="Auto", group="dev")
public class Auto extends LinearOpMode {

    @Override
    public void runOpMode() {
        Drive drive = new Drive.Builder(this, hardwareMap)
            .build();
        Color color = new Color.Builder(hardwareMap)
            .build();

        waitForStart();
        if (opModeIsActive()) {
            drive.command(Drive.Direction.FORWARD, 3, 0.5);
            if (color.state() == RGB.BLUE) {
                drive.command(Drive.Direction.FORWARD, 3, 0.5);
            }
        }
    }
}

Any mechanism or sensor can be implemented in this manner for either TeleOp or Autonomous. In fact, even command() can be used in TeleOp for planned sequences; see Examples for how to do this

TeleOp

First, create an OpMode in the blocks editor Web UI

Press 'Create New OpMode'
Enter a name and use the default sample titled 'BasicOpMode'
Press OK

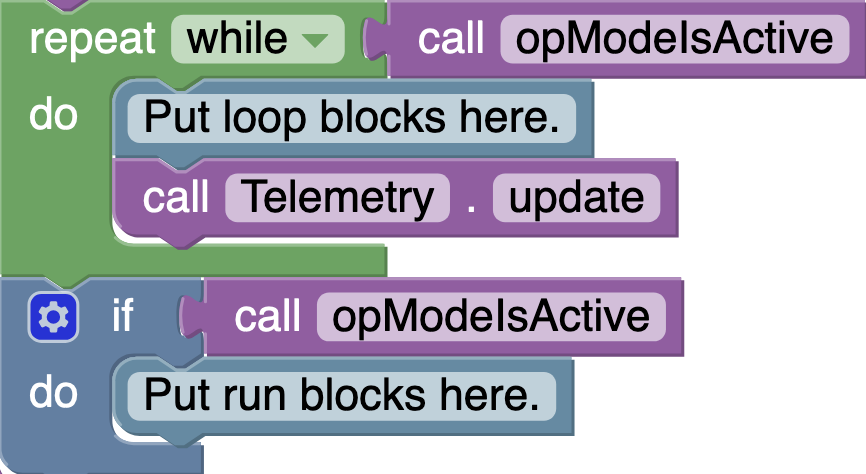

Move the green while loop block to before the blue if statement
Delete the blue if statement block

By default, this is a Linear OpMode setup for TeleOp- note that easy-ftc only works with Linear OpModes

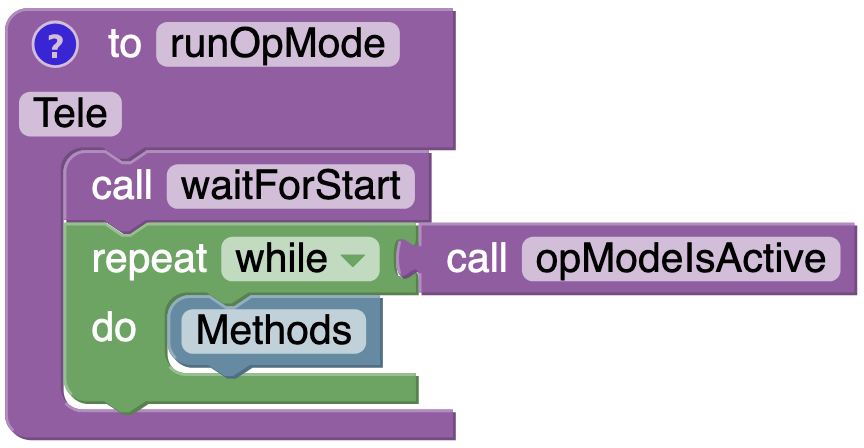

TeleOp - Starting Code

Note the location of Methods

If you want to control a mechanism in TeleOp, you'll need to add a control() block for that mechanism to 'Methods'. For every loop iteration, this block will read the relevant gamepad inputs and send them to that mechanism's hardware devices, enabling TeleOp control

Let's see how to make your robot drive

In the 'Java Classes' dropdown, click Drive

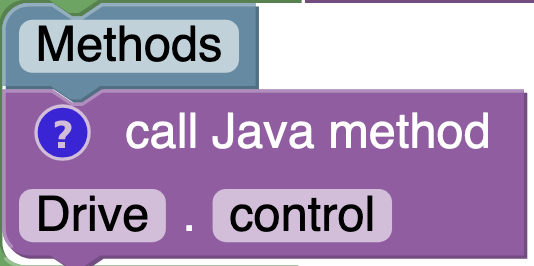

Drag the control block to 'Methods'

That's it! By default, this will control a two-motor tank drivetrain with the gamepad joysticks. This behavior can be changed by modifying the Builder methods in Drive.java (which is where hardware initialization is occurring)

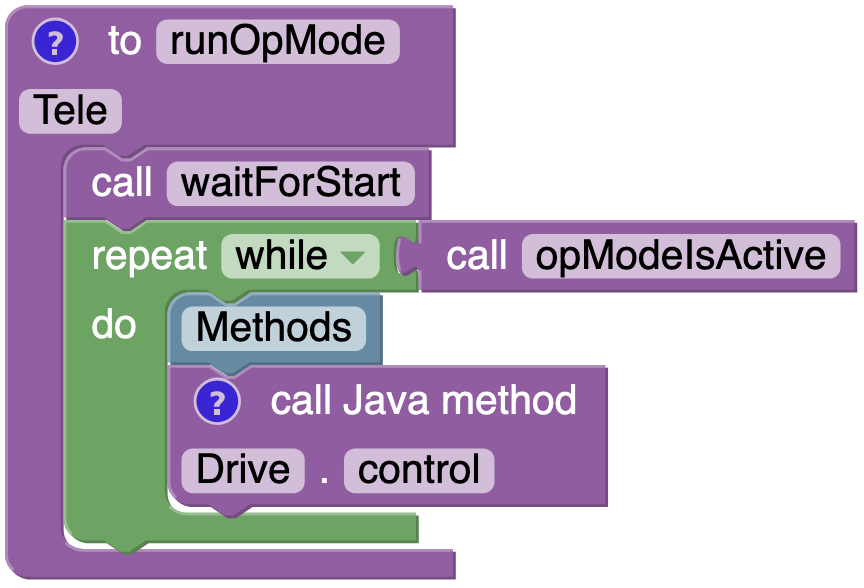

TeleOp - Final Code

Autonomous

Let's do the same for autonomous

Create a new OpMode following the instructions above
Change the OpMode annotation from 'TeleOp' to 'Autonomous'

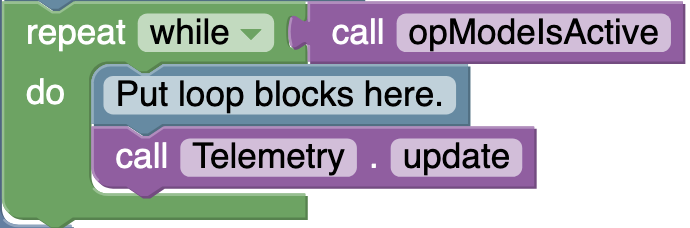

Delete the green while loop block

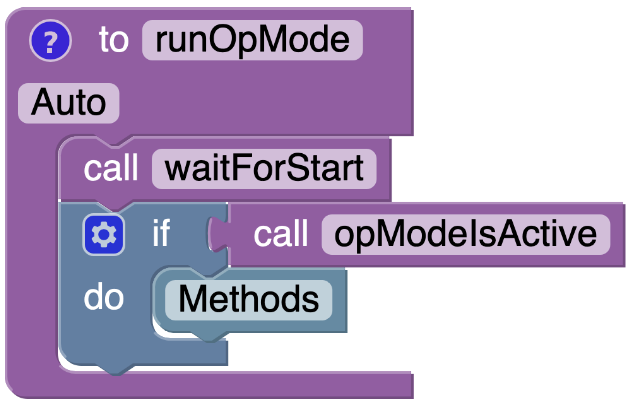

Autonomous - Starting Code

Note the location of Methods

As autonomous does not allow gamepad control, we'll need to use the command() block to move a mechanism in this match phase. This block commands mechanisms to move as the user specifies, with servo mechanisms taking only one argument (direction) and motor mechanisms taking three (direction, measurement, and power)

To make your robot drive forward at half-power for 3 seconds

In the 'Java Classes' dropdown, click Drive

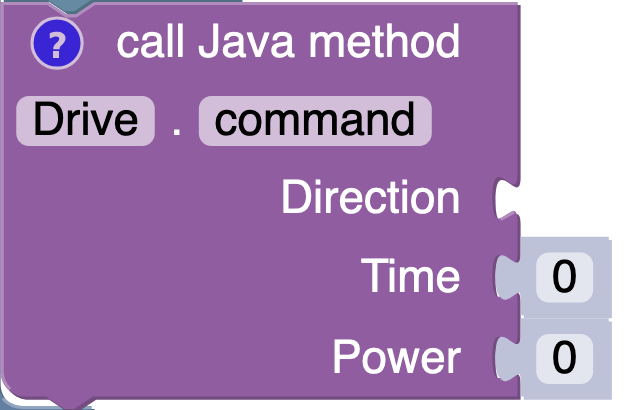

Drag the command block to 'Methods'

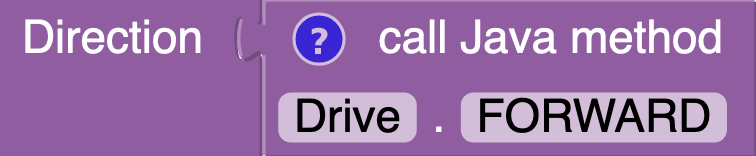

Drag the FORWARD block to the Direction argument of the command block

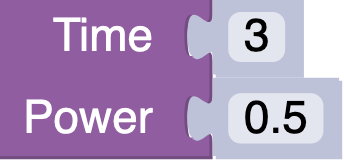

Change Time to 3 and Power to 0.5

Distance-based movement can be automatically used instead of time by adding .encoder() and .diameter(wheelDiameter) to Drive.Builder() in Drive.java. .gearing(motorGearing) may also need to be corrected for greater accuracy

Now, what if you want your robot to move forward, then decide whether to move again based on the color of an object?

This is where state() is used

In the 'Java Classes' dropdown, click Color

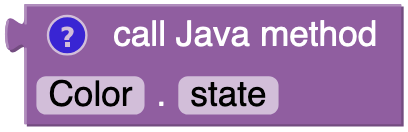

Drag the state block to 'Methods' (it won't click in yet)

This will allow your robot to read the color value of an object, but without additional logic, nothing will be different about your code. Let's change that

Click the 'Logic' submenu
Drag another if statement underneath the command block

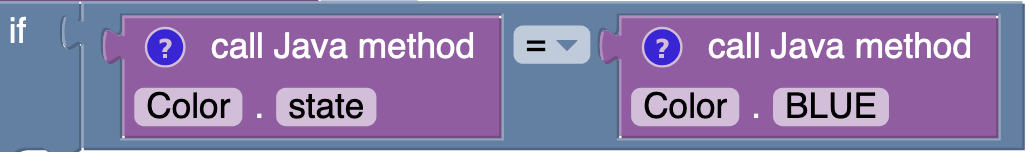

In that same submenu, drag an 'equals' block to the first line of this if statement
Move state to the left half of the 'equals' block
Drag the BLUE block in the Color submenu to the right half of the 'equals' block

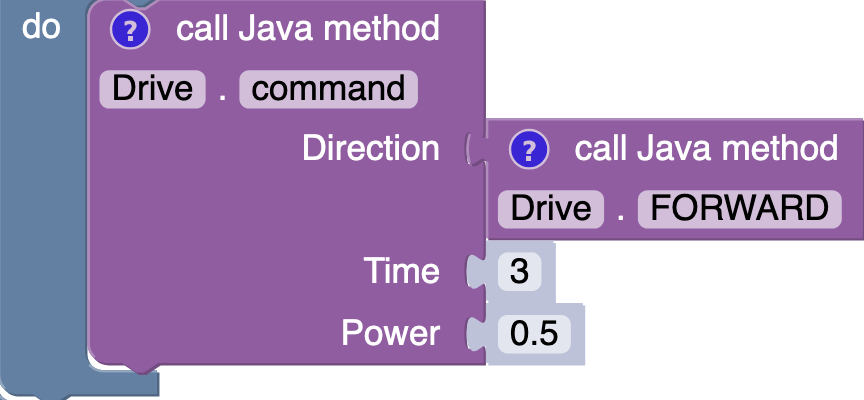

Copy and paste the existing command block to be inside this if statement

Now your robot will drive forward for 3 seconds at half-power, then do it again if it detects the color blue

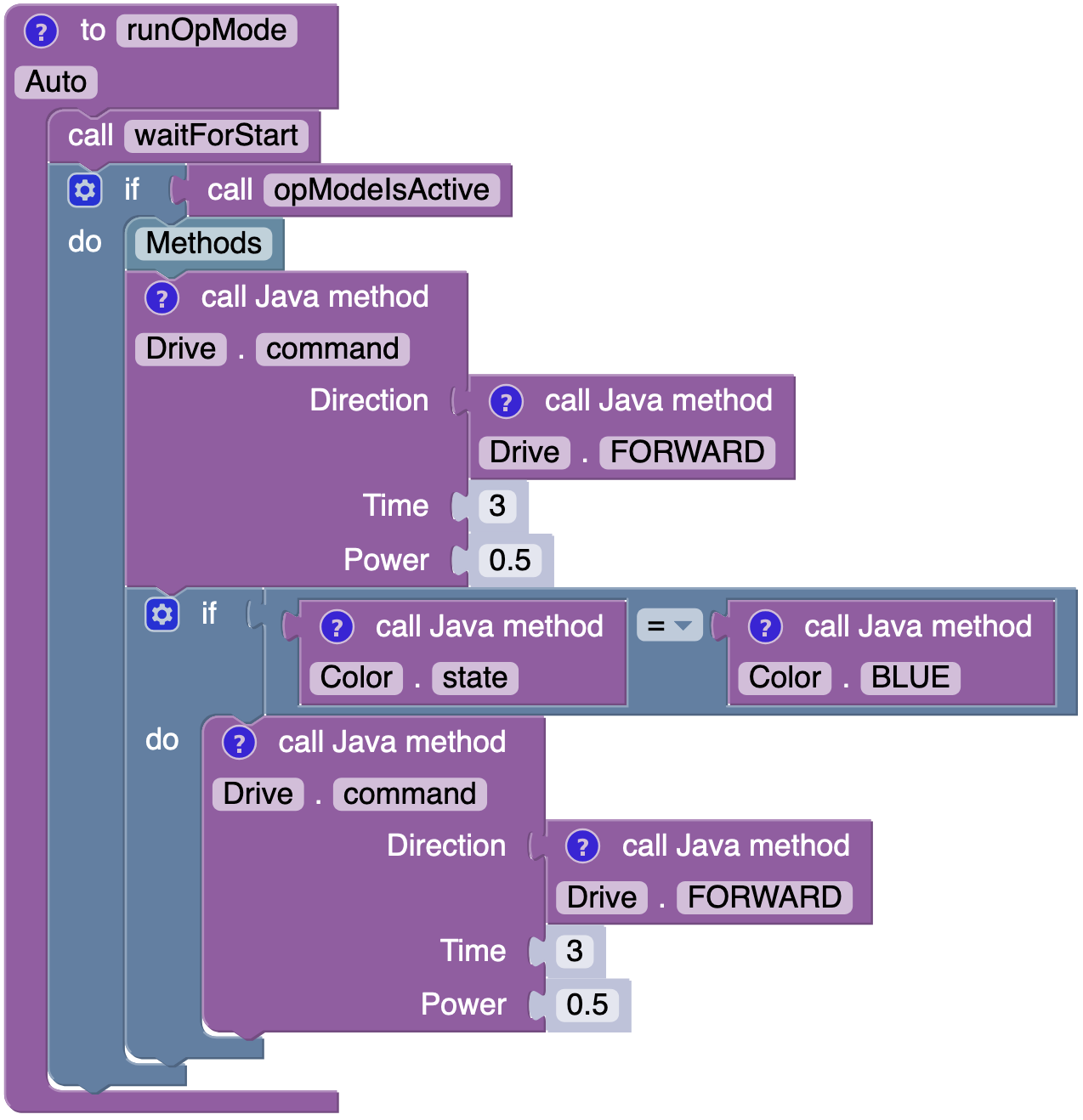

Autonomous - Final Code

Any mechanism or sensor can be implemented in this manner for either TeleOp or Autonomous. In fact, even command() can be used in TeleOp for planned sequences; see Examples for how to do this
